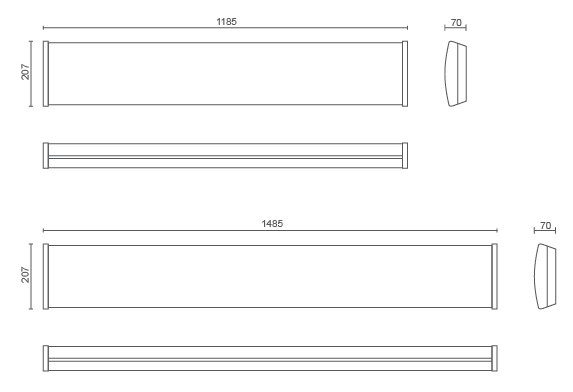

The Vanguard is available in 1200mm & 1500mm lengths as a ceiling surface or suspended luminaire. The low glare prismatic moulded diffuser gives the Vanguard the versatility to be used in office/classroom spaces as well as being used in circulation spaces such as corridors and stairwells.
Due to its polycarbonate moulded construction the luminaire also has an IK08 impact rating.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output Custom lumen outputs available | 3305lm (1200mm) 4131lm (1500mm) | VAN/3305 VAN/4131 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Type | Options | Code |
|---|---|---|
| Mounting | Suspended | -S |
| Dimming | DALI Dimming Switch dim/Touch dim Casambi | -DA -TD -CA |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 -E2 -E3 |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

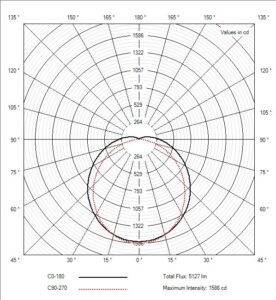

120° Beam Angle
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 3305 lm (1200mm) | 30.0 W | 110.3 ll/cW |
| 4131 lm (1500mm) | 37.5 W | 110.2 ll/cW |
| Light Source | SMD |
| SDCM | 3 |
| Longevity (L70/B10) | 60,000 hours |
| Colour Rendering | 82 |
| UGR | <19 |
| IP Rating | IP65 |
| Construction | Steel Body Polycarbonate Diffuser |
| Colour | White 9016 |
| Mounting Method | Surface (Standard) 2m Suspended |
| Protective Class | Class 1 |
| Impact Resistance (IK) | IK08 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <5% |
| Overvoltage Protection | 320 V |
| In-rush Current | 2.5 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.9W |
| Operating Temperature | -25 +60°C |
| Standard Lumen Output | BLF | Emergency Lumen Output |
|---|---|---|
| 3305 lm | 9% | 309 lm |
| 4131 lm | 7% | 309 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | UKCA, CE, ROHS |
