Titan 6

Titan 6 is the go to for a rewireable 6 pole plug in ceiling rose solution.
Incorporating the trusted Wieland GST 18i connectors, Titan 6 is ideal for
surface installations where final connection to the luminaire has look as
minimal as possible

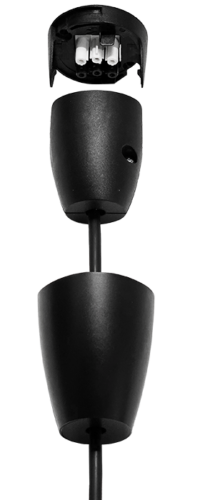

The socket fits onto any standard BESA box. Suitable for standard, dimmable, or specialist lighting applications. The plug latches into place with a satisfying ‘click’ and the decorative cover, secured with a simple quarter twist, provides the minimalist look. The plug is also designed to look smart enough by itself and can be used without the cover if required.

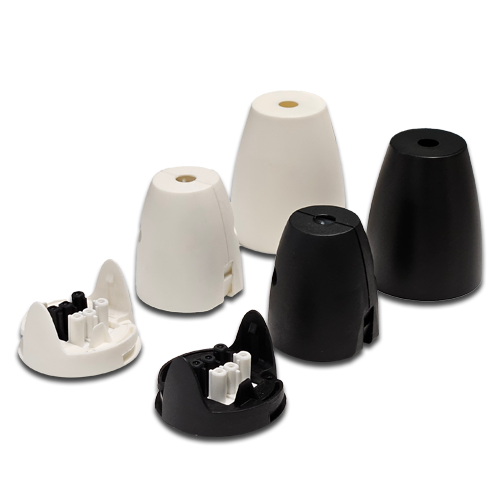

  • Matte black or matte white finish options
  • 6 pole for all dimming and emergency wiring options
  • Large capacity terminals 2.5mm
  • Suitable for on load connection/disconnection of lighting
  • Easy twist lock architectural cover
  • Diameter of cover matches diameter of BESA box for a sleek look

Options

Type Options Code
Mount & Plug for BESA Box
(BESA box not included)
White
Black
TAN6/MW
TAN6/MB
Architectural Cover White
Black
/CW
/CB

Performance & Reliability

Independently tested to a SWL of 8kg.
(clause 4.14 of BS EN IEC 60598-2-1: 2021 (fixed luminaires) and BS EN IEC 60598-1: 2021 + A11: 2022)

Technical Data

Rated Voltage 250V
Current Rating 10 Amp
Frequency 4kV
Strain Relief 8kg
IP Rating IP20
Outgoing Cable Capacity 6 cores – 0.75mm to 1.5mm Ø11mm outer diameter cable
Contact Material CuZn, Tin-plated
Terminal Material Spring force: spring steel and wrought copper alloy Screw: steel, galvanized IDC: wrought copper alloy
Terminal Capacity (Socket) 2.5mm
Operating Temperature -5° to 40° degrees celcius
Product Conformity Standards EN IEC 61535 2019 , EN60320-1 2015+2016, EN 60320-2-2 1998, EN60598-1, UL 1977, BS 5733, LVD 2014/35/EU, RoHS 2011/65/EU
Certification UKCA, CE, ROHS
