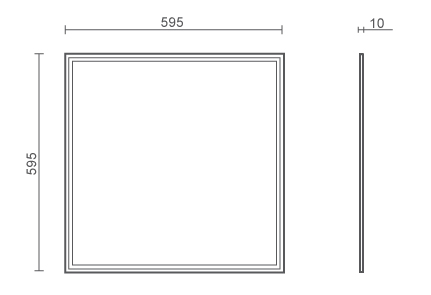

The Terum is an IP44 flat panel modular for use in T15 & T24mm ceilings with surface mount and suspended options.
The Terum uses a premium LED engine & driver to deliver a 5 year warranty with a longevity of at lease 50,000 hours.
The luminaire is constructed from white powder coated aluminium and has a opal PMMA diffuser. Lumen outputs are available from 3000lm to 4000lm.
More than 50,000 hours life span
'Plug and Play' No hard fixing
Easy install No remote components
Modular component build
| Type | Options | Code |
|---|---|---|
|
Ceiling Type |
Currently unknown T24/T15 Lift & Tilt Plasterboard ceiling Surface mounted Suspended |
TR6/** |
| Diffuser Type | Frosted Opal | /F1 |
| Colour Temperature | 3000K 4000K 6500K |
/3K /4K /6K |
|
Lumen Output* *Custom available upon request |
3000lm 3100lm 3200lm 3300lm 3400lm 3500lm 3600lm 3700lm 3800lm 3900lm 4000lm |
300 310 320 330 340 350 360 370 380 390 400 |
| Type | Options | Code |
|---|---|---|
| Mounting | Suspended | -S |
| Dimming | DALI Switch dim/Touch dim Mains dimming Casambi | -DA -SD -MD -CA |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 -E2 -E3 |
Using Premium LED drivers with window function, our luminaires can be preset (both Fixed Output & DALI versions) during the production process to a desired lumen output. This gives the versatility to reflect custom lumen packages used for project based lighting calculations.
Another benefit to this technology is post luminaire installation, the light output can be adjusted to increase/decrease from its original setting. This could be in the instance of a rentable space (CAT A) becoming an occupied space (CAT B).
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 3681 lm | 34.2 W | 107.6 ll/cW |
| 3972lm | 36.9 W | 107.6 ll/cW |
| Light Source | SMD |
| SDCM | 3 |
| Longevity (L70/B10) | 50,000 hours |
| Colour Rendering | 80 |
| UGR | <19 |
| IP Rating | IP44 |
| Construction | Aluminium frame PMMA diffuser |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | Recessed Surface Suspension |
| Protective Class | SELV |
| Impact Resistance (IK) | IK04 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 250 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <4% |
| Overvoltage Protection | 320 V |
| In-rush Current | 9 A |
| THD | <20% |
| Power Factor | 0.90 |
| Parasitic Load | 0.43W |
| Operating Temperature | -20 +50°C |
| Standard Lumen Output | BLF | Emergency Lumen Output |
|---|---|---|
| 3681 lm | 10% | 356 lm |
| 3972 lm | 9% | 356 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | UKCA, CE, ROHS |
