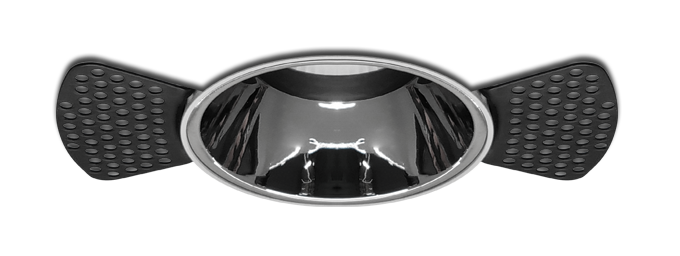

The Sting Mini is a trimless downlight and part of the Sting family. It tackles glare by using a light source set back from the bezel whilst maximising light output with a specular aluminium reflector.

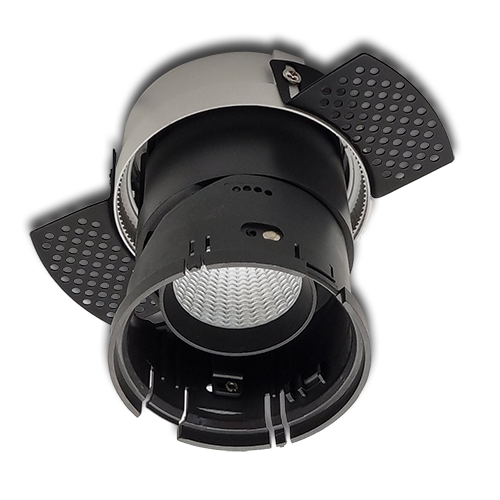

The luminaire has a two part installation process. The Sting Mini is supplied with two adjustable mesh wings which allows for the first-fix frame to be installed, plastered and painted first of all. Once the ceiling has been made good the main body of the product can be installed and wired.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output | 668lm 835lm | STG/M/668 STG/M/835 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Beam Angle | 36° Beam 60° Beam | /36 /60 |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming Switch dim/Touch dim Mains dimming Casambi | -DA -SD -MD -CA |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 -E2 -E3 |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 668 lm | 8.6 W | 77.7 ll/cW |
| 835 lm | 10.8 W | 77.3 ll/cW |
| Light Source | COB |
| SDCM | 3 |
| Longevity (L70/B10) | 60,000 hours |
| Colour Rendering | 82 |
| UGR | <19 |
| IP Rating | IP20 |
| Construction | Diecast Aluminium |
| RAL Colour (Other colours available upon special request) | N/A |
| Mounting Method | Recessed Trimless |
| Protective Class | SELV |
| Impact Resistance (IK) | IK04 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <1% |
| Overvoltage Protection | 320 V |
| In-rush Current | 12 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.5W |
| Operating Temperature | -25 +60°C |
| Standard Lumen Output | BLF | Emergency Lumen Output |
|---|---|---|
| 668 lm | 41% | 273 lm |
| 835 lm | 32% | 273 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
Datasheet
Installation Guide
TM65

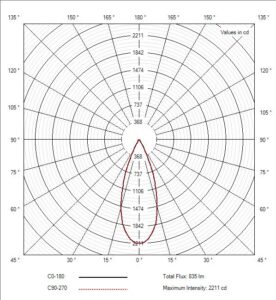

Photometrics
