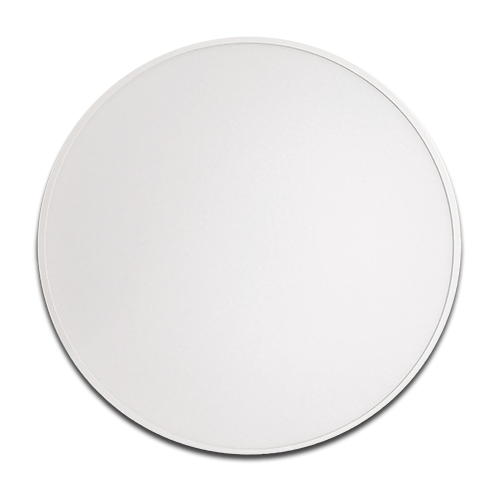

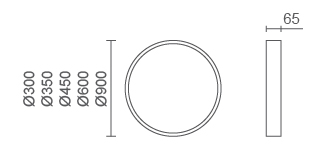

The Roma is a interior circular wall light with sizes ranging from Ø300mm to Ø600mm and a depth of 65mm, The body is constructed from spun sheet steel and uses a polycarbonate opal diffuser. The bezel of the product also has a fixingless appearance due to the sub-assembly construction and flexible diffuser.
The Roma is targeted at large stairwells and corridors where wiring points are limited and therefore require a higher lumen output.
The Roma can also be used for ceiling mounted or ceiling suspended applications (3-point suspension) giving the luminaire versatility.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Size | Ø300mm Ø350mm Ø450mm Ø600mm Ø900mm |
ROM-30 ROM-35 ROM-45 ROM-60 ROM-90 |
| Lumen Output Custom lumen output available |
1400lm 2000lm 2600lm 3200lm 3800lm |
/1400 /2000 /2600 /3200 /3800 |
| Colour Temperature | 3000K 4000K 6000K |
/3K /4K /6K |
| Type | Options | Code |
|---|---|---|
| Mounting | Suspended (3-point wire) Suspended (rod) | -S -SR |
| Dimming | DALI Dimming Switch dim/Touch dim Mains dimming Casambi | -DA -SD -MD -CA |
| Sensor | Microwave Sensor | -S1 |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 -E2 -E3 |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.
120° Beam Angle
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 1,400 lm | 12.0 W | 116.7 ll/cW |
| 2,000 lm | 17.1 W | 116.6 ll/cW |
| 2,600 lm | 22.5 W | 115.6 ll/cW |
| 3,200 lm | 27.7 W | 115.5 ll/cW |
| 3,800 lm | 33.1 W | 114.8 ll/cW |
| Light Source | SMD |
| SDCM | 3 |
| Longevity (L70/B10) | 60,000 hours |
| Colour Rendering | 82 |
| UGR | <22 |
| IP Rating | IP20 |
| Construction | Polycarbonate Aluminium |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | Surface (Standard) Suspended |
| Protective Class | Class 1 |
| Impact Resistance (IK) | IK04 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <5% |
| Overvoltage Protection | 320 V |
| In-rush Current | 2.5 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.9W |
| Operating Temperature | -25 +60°C |
| Standard Lumen Output | BLF | Emergency Lumen Output |
|---|---|---|
| 1,400 lm | 25% | 350 lm |
| 2,000 lm | 18% | 360 lm |
| 2,600 lm | 14% | 364 lm |
| 3,200 lm | 11% | 352 lm |
| 3,800 lm | 9% | 343 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | UKCA, CE, ROHS |
Datasheet
Installation Guide
TM65

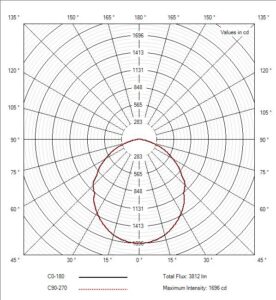

Photometrics
