The Rida is a compact adjustable track mounted spotlight which is compatible with Powergear, Global and other track systems.
The luminaire can be supplied in with single and three phase versions and can also be used with DALI dimming tracks.
This luminaire is construction from two die-cast parts – the heastsink and bezel. These components are held together at the point of articulation for ease of maintenance.
The Apollo is available in black and white finishes.
More than 60,000 hours life span
'Plug and Play' No hard fixing
Easy install No remote components
Modular component build
| Type | Options | Code |
|---|---|---|
| Lumen Output | 1494lm 1868lm 2491lm | RID-T/1494 RID-T/1868 RID-T/2491 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Beam Angle | 36° Beam 45° Beam | /36 /45 |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming Switch dim/Touch dim Mains dimming Casambi | -DA -SD -MD -CA |
Supplied with high performance LED engine and premium Premium driver to ensure an outstanding performance with longevity.
| Typical Lumen Outputs | Wattage | ll/cW |
|---|---|---|
| 1868 lm | 15.1 W | 123.7 ll/cW |
| 2491 lm | 20.1 W | 123.9 ll/cW |
| Light Source | COB |
| SDCM | 3 |
| Longevity (L70/B10) | 70,000 hours |
| Colour Rendering | 82 |
| UGR | <19 |
| IP Rating | IP20 |
| Construction | Diecast Aluminium |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | Track mounted: Global Powergear Stucchi Unipro |
| Protective Class | Class 1 |
| Impact Resistance (IK) | IK04 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <3% |
| Overvoltage Protection | 320 V |
| In-rush Current | 2.5 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.8W |
| Operating Temperature | -25 +60°C |
Datasheet
Installation Guide
TM65

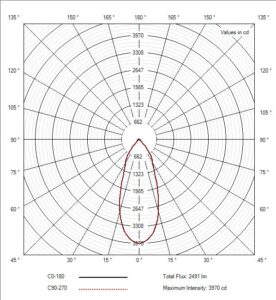

Photometrics
