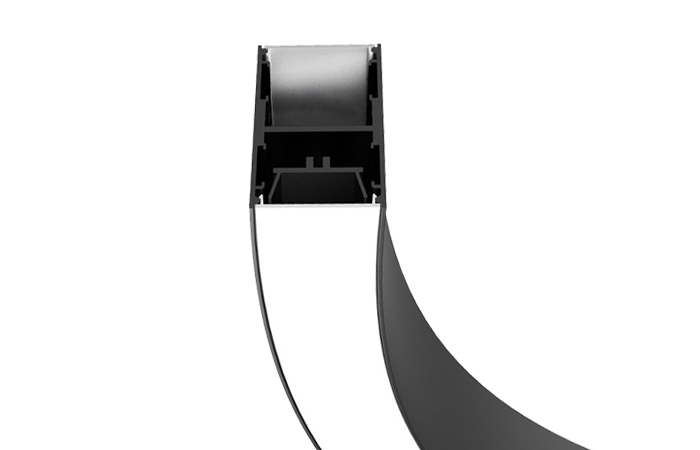

Phoenix

The Phoenix is a linear luminaire which can be supplied in continuous lengths of 70mm increments. Continuous lengths of multiple runs come as standard with a ‘through wiring’ loom meaning that only the start module of the run requires termination.

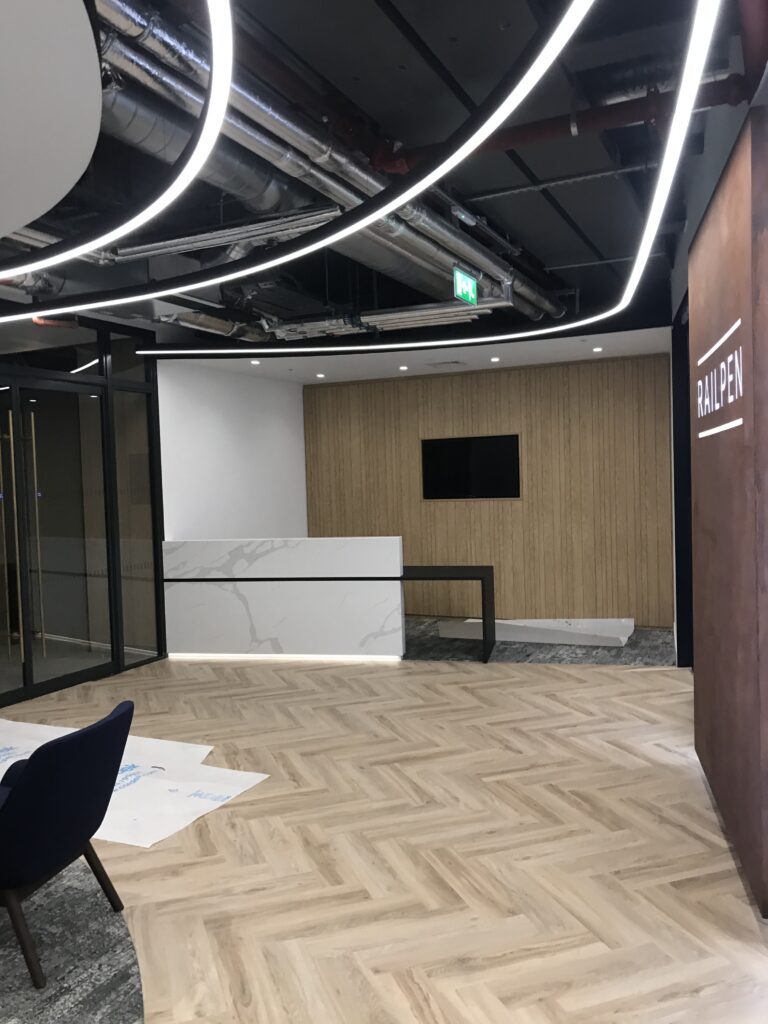

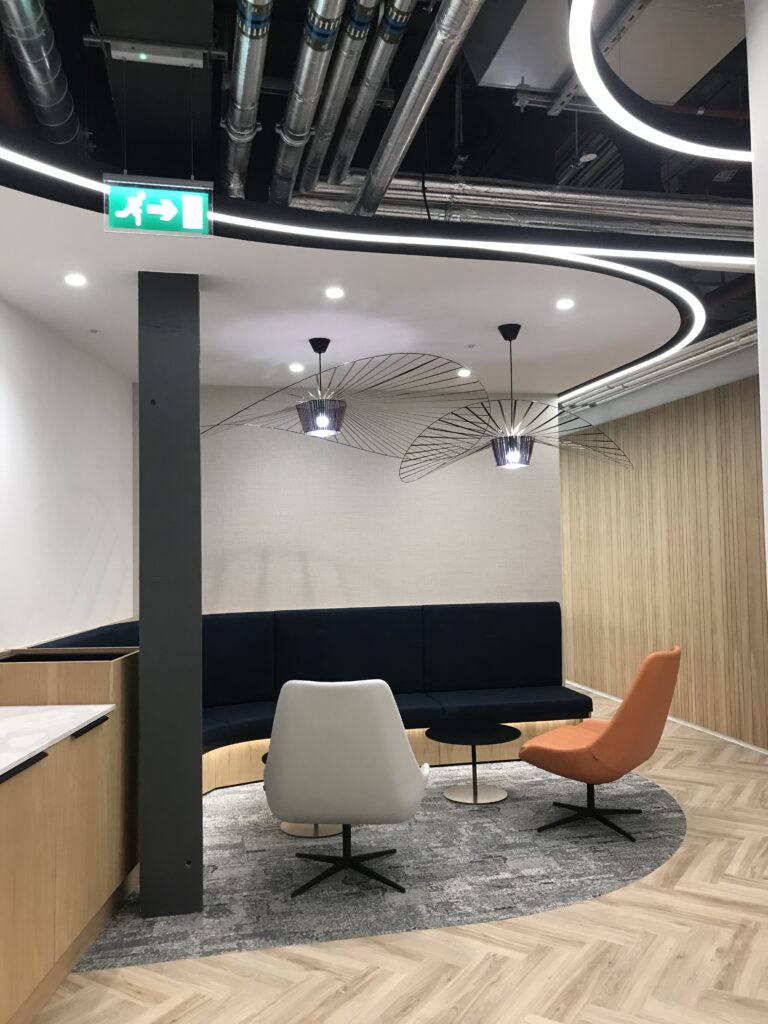

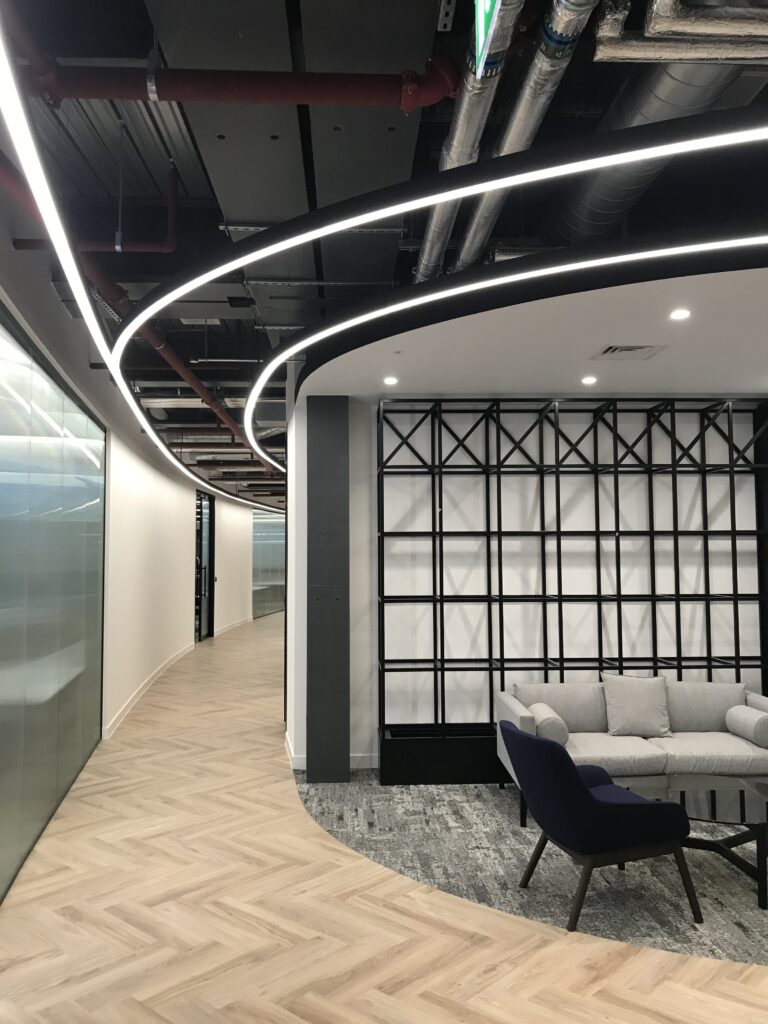

The luminaire is custom roll-formed to match each projects bespoke requirements of almost any geometric shape/s,  through custom bend radius and diameters to match an agreed technical drawing.

The Phoenix can be supplied in either surface or suspended formats.

Clock Icon

More than 70,000 hours life span

'Plug and Play' No hard fixing

Easy install No remote components

Modular component build

Options

TypeOptionsCode
Direct OnlyStandalone
Start
Middle
End
Corner
Cross
PHO/0
PHO/1
PHO/2
PHO/3
PHO/4
PHO/5
Lumen Output500lm to 7000lm/****

Length*



*Excluding Endcaps

560mm to 2940mm/****
Colour Temperature3000K
4000K
5000K
6500K
Tunable White
/3K
/4K
/5K
/6K
/TW

Extras

Type Options Code
Dimming DALI Dimming -DA
Suspended Mounting Suspension Kit & 2m Power Flex -S
Integrated Sensor PIR & Daylight Smart Mesh, PIR & Daylight -S1 -S2
Emergency 3 Hour Facility 3 Hour Self Test 3 Hour Central Test -E1 -E2 -E3

Tunable White

The effect of light on our biological clock is important as it influences many aspects of our physical and emotional well-being. This biological clock is regulated by light and darkness, by the daily cycles of night and day and the time we spend asleep and awake.

In the morning, as the sun comes up, light levels increase, the colour of light shifts towards cooler colour temperatures, and we wake up and become active. On the other hand, in the evening, as the sun goes down and the colour of light shifts towards warmer colour temperatures, we unwind, relax and prepare for sleep.

Our body’s hormone levels rise and fall with these light cycles. Cortisol production increases with morning light and decreases throughout the course of the day. Melatonin levels increase as darkness sets in and decrease as morning approaches. In our modern society, we spend much of our time indoors – at home, in a school, office, shop or hospital. Those who have to stay indoors for significant parts of their time under static lighting conditions run the risk of disrupting their biological rhythms.

Smart Programming

Using Premium LED drivers with window function, our luminaires can be preset (both Fixed Output & DALI versions) during the production process to a desired lumen output. This gives the versatility to reflect custom lumen packages used for project based lighting calculations.

Another benefit to this technology is post luminaire installation, the light output can be adjusted to increase/decrease from its original setting. This could be in the instance of a rentable space (CAT A) becoming an occupied space (CAT B).

Performance

Typical Lumen OutputsWattagell/cW
3702 lm/m29.3 W/m126.3 ll/cW
4104 lm/m33.1 W/m124.0 ll/cW
Rated Supply Voltage220 – 240 V
AC Voltage Range202 – 250 V
Mains Frequency50/60 Hz
Output LF current ripple @ 120Hz (Flicker)<1%
Overvoltage Protection320 V
THD<20%
Dimming Range1 – 100%
Operating Temperature-25… +60 °C
Longevity (L70/B10)70,000 hours
Colour Rendering (3 SDCM)Ra>82
UGR<19

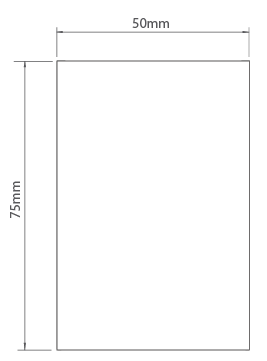

Dimensions (Standard format)50 x 75mm
Weight3.5kg/m
Warranty5 Years
CertificationCE, ROHS

Emergency

Lumen OutputBLFEmergency Lumen Output
3702 lm/m12%444 lm
4104 lm/m11%451 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 2.4V 2.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
