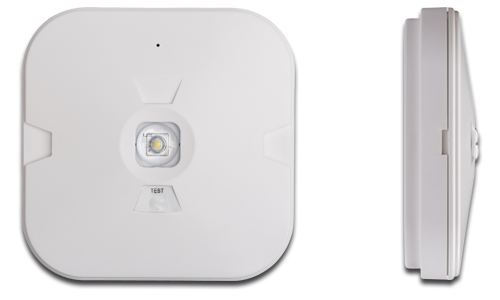

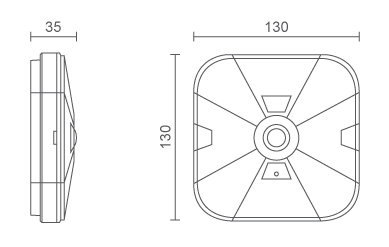

The Luci is a 3 Watt LED surface mounted 3 hour emergency luminaire, with all electronic gear is housed internally within the body. This gives the product a slim minimalist appearance (only 35mm height) without the need to accommodate remote gear.
The unit utilises LiFePO4 (Lithium iron phosphate) battery technology which provides a far longer life than traditional battery types, making this an ideal product for difficult to maintain areas.
The unit is available in Maintained and Non-Maintained modes.
More than 60,000 hours life span
Easy Installation Process
Assured build quality with die-cast based construction
5 Year Warranty (Excluding Battery)
| Type | Options | Code |
|---|---|---|
| Lumen Output | 210lm | LUC/280 |
| Mounting Option | Surface | /SFC |
| Operation | Maintained Non-Maintained | /M /NM |
| Emergency | 3 Hour Facility 3 Hour Self Test | /E1 /E2 |
| Type | Options | Code |
|---|---|---|
| Optic | Open Area | -AO -CD |

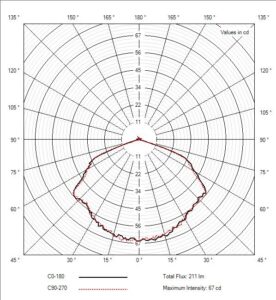

Open Area 120° Beam Angle

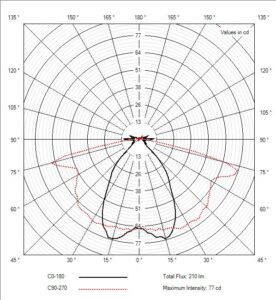

Corridor 120° Beam Angle
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 280 lm | 2.5 W | 112.0 ll/cW |
| IP Rating | IP54 |
| Construction | Polycarbonate |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) |
| Mounting Method | Surface |
| Protective Class | Class 2 |
| Impact Resistance (IK) | IK01 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <1% |
| Overvoltage Protection | 320 V |
| In-rush Current | 3 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.3W |
| Operating Temperature | 0 +40°C |
| Standard Lumen Output | BLF | Emergency Lumen Output |
|---|---|---|
| 280 lm | 100% | 280 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3.6V 1800mAh |
| Emergency Power | 2.0W |
| Operating Tempertaure | 0 – 40°C |
| Power Efficiency | 95% |
Installation Guide
Datasheet
Photometrics
