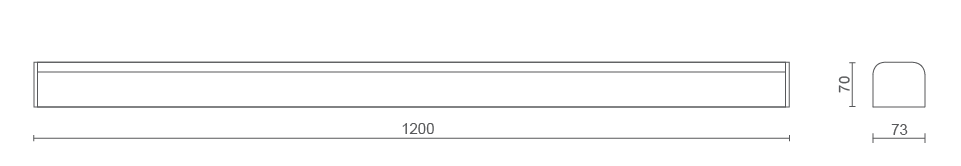

The LED batten is a 1200mm IP44 rated linear surface or suspended luminaire for use in ancillary, storage and warehousing areas. The product is supplied surface mounted as standard and can be supplied with an optional suspension kit.
The Batten is supplied with frosted diffuser, polycarbonate body and stainless steel diffuser clips to suit the installation environment. Due to its polycarbonate moulded construction the luminaire also has an IK08 impact rating.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output | 5127lm | BAT/5127 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Type | Options | Code |
|---|---|---|
| Mounting | Suspended | -S |
| Dimming | 1-10V Dimming DALI Dimming | -110V -DA |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 -E2 -E3 |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 5073 lm | 35.6 W | 142.5 ll/cW |
| Light Source | SMD |
| SDCM | 3 |
| Longevity (L70/B10) | 50,000 hours |
| Colour Rendering | 82 |
| UGR | <22 |
| IP Rating | IP44 |
| Construction | Polycarbonate |
| RAL Colour | RAL9016 (Standard) |
| Mounting Method | Surface (Standard) 2m Suspended |
| Protective Class | Class 1 |
| Impact Resistance (IK) | IK08 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <5% |
| Overvoltage Protection | 320 V |
| In-rush Current | 2.5 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.9W |
| Operating Temperature | -25 +60°C |
| Standard Lumen Output | BLF | Emergency Lumen Output |
|---|---|---|
| 5073 lm | 8% | 399 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | UKCA, CE, ROHS |
