Hornet System

Product Overview

The Hornet is a modular back lit system luminaire designed with variable configurations to fit any SAS, Burgess or custom ceiling types.

The Hornet is supplied with the latest Philips Fortimo LED boards and SimpleSet driver allowing the luminaire to have a tuneable lumen output range from 500 to 7000lm.

The luminaire is constructed from white powder coated steel with a brushed aluminium interface tray. Diffuser options consist of PMMA opal and Micro Prismatic.

All Hornet modular luminares are supplied with a panel mount socket as standard which makes for a higher quality finish and fast installation (no hard fixing). All electronic gear and components are housed with in the product on the interface tray which makes the luminaire easy to handle and gives the product a minimalist appearance.

Bespoke Design Services

Options

Type	Options	Code
Ceiling Type* Custom available upon request*	Currently unknown T24/T15 Lift & Tilt T15 with 4mm tegulation T15 with 8mm tegulation T15 with 16mm tegulation T24 with 4mm tegulation T24 with 8mm tegulation T24 with 16mm tegulation SAS120 metal tile SAS150 metal tile Burgess metal tile Plasterboard ceiling SAS330 (without gaskets) SAS330 (with gaskets)	HT/** HT/C1 HT/T1 HT/T2 HT/T3 HT/T4 HT/T5 HT/T6 HT/M1 HT/M2 HT/M3 HT/PB HT/S1 HT/S2
Diffuser Type	Frosted Opal Micro Prism	/F1 /P1
Colour Temperature	3000K 4000K 5000K 6500K Tunable White	/3K /4K /5K /6K /TW
Lumen Output* Custom available upon request*	3600lm 3700lm 3800lm 3900lm 4000lm 4100lm 4200lm 4300lm 4400lm 4500lm 4600lm 4700lm 4800lm 4900lm 5000lm	360 370 380 390 400 410 420 430 440 450 460 470 480 490 500

Extras

Type	Options	Code
Dimming	DALI Switch dim/Touch dim Mains dimming Casambi	-DA -SD -MD -CA
Air Handling	10 Litres / Second 20 Litres / Second 30 Litres / Second 40 Litres / Second	-A1 -A2 -A3 -A4
Integrated Sensor	PIR & daylight Smart Mesh, PIR & daylight Free issue sensor	-S1 -S2 -SF
Emergency	3 Hour Facility 3 Hour Self Test 3 Hour Central Test	-E1 -E2 -E3

Diffuser Options

Micro Prism

The micro prism diffuser eliminates glare by redirecting sideways light emission downwards, giving the luminaire a dimmer appearance when viewed from the side.

This diffuser type is therefore recommended when a very low UGR rating is required or if the luminaire is required to have a high lumen package and therefore needs optical control to remain UGR compliant.

Opal PMMA

The opal diffuser creates an homogeneous even light output whilst also remaining aesthetically even in appearance across its surface. Due to these characteristics the opal diffuser naturally creates a higher uniformity in interior spaces whilst increasing the amount of light on the walls & vertical surfaces in the spirit of LG7.

This diffuser is therefore recommended in spaces where high uniformity, vertical illuminance and LG7 performance is required.

Tunable White

The effect of light on our biological clock is important as it influences many aspects of our physical and emotional well-being. This biological clock is regulated by light and darkness, by the daily cycles of night and day and the time we spend asleep and awake.

In the morning, as the sun comes up, light levels increase, the colour of light shifts towards cooler colour temperatures, and we wake up and become active. On the other hand, in the evening, as the sun goes down and the colour of light shifts towards warmer colour temperatures, we unwind, relax and prepare for sleep.

Our body’s hormone levels rise and fall with these light cycles. Cortisol production increases with morning light and decreases throughout the course of the day. Melatonin levels increase as darkness sets in and decrease as morning approaches. In our modern society, we spend much of our time indoors – at home, in a school, office, shop or hospital. Those who have to stay indoors for significant parts of their time under static lighting conditions run the risk of disrupting their biological rhythms.

Standard & Bespoke Bezel Options

The Hornet has many standard bezel options to allow the luminaire to integrate into any ceiling type including plasterboard. Features also include allowing for a drop tegulation below the ceiling plane to match various ceiling tile products. RAL colour can also be specified to allow the Hornet to seamlessly match ceiling tile aesthetics.

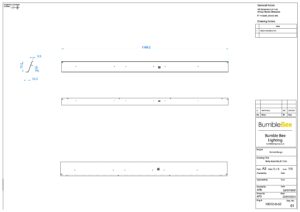

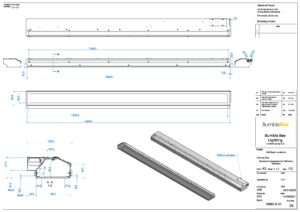

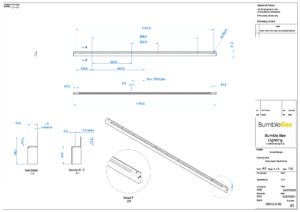

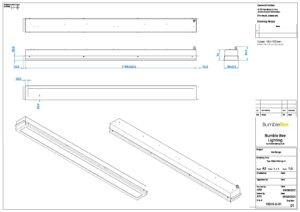

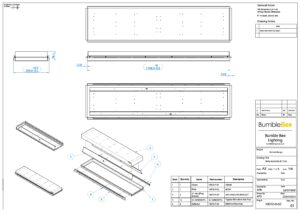

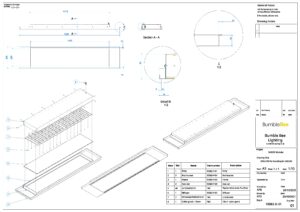

Bespoke bezel options and luminaire sizes are also available upon request.

Smart Programming

Using Premium LED drivers with window function, our luminaires can be preset (both Fixed Output & DALI versions) during the production process to a desired lumen output. This gives the versatility to reflect custom lumen packages used for project based lighting calculations.

Another benefit to this technology is post luminaire installation, the light output can be adjusted to increase/decrease from its original setting. This could be in the instance of a rentable space (CAT A) becoming an occupied space (CAT B).
