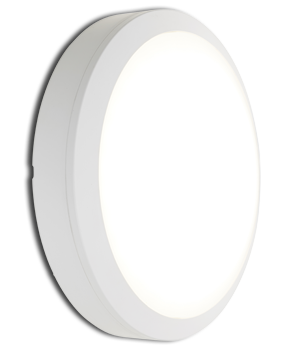

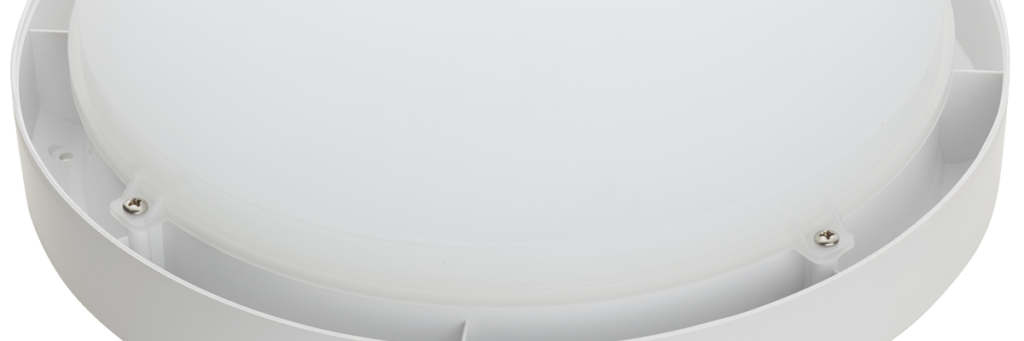

The Gecko is a Ø300mm IP65 circular wall light with a depth of only 90mm. The body is constructed from polycarbonate which houses the opal diffuser. Because of this the Gecko also achieves an impact rating of IK08. The bezel of the product also has a fixingless appearance due to the sub-assembly construction.
The Gecko is available with emergency and integrated microwave sensor options.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output | 2500lm | GEK/2500 |
| Colour Temperature | 3000K 4000K 6000K | /3K /4K /6K |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming Switch dim/Touch dim Mains dimming Casambi | -DA -SD -MD -CA |
| Sensor | Microwave Sensor | -S1 |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 -E2 -E3 |
Supplied with high performance LED engine and premium Premium driver to ensure an outstanding performance with longevity.
120° Beam Angle
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 2,500 lm | 24.0 W | 104.1 ll/cW |
| Light Source | SMD |
| SDCM | 3 |
| Longevity (L70/B10) | 35,000 hours |
| Colour Rendering | 82 |
| UGR | <22 |
| IP Rating | IP66 |
| Construction | Polycarbonate |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9005 |
| Mounting Method | Surface |
| Protective Class | Class 2 |
| Impact Resistance (IK) | IK10 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <5% |
| Overvoltage Protection | 320 V |
| In-rush Current | 2.5 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.9W |
| Operating Temperature | -25 +60°C |
| Standard Lumen Output | BLF | Emergency Lumen Output |
|---|---|---|
| 2,500 lm | 17% | 272 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
Datasheet
Installation Guide
TM65

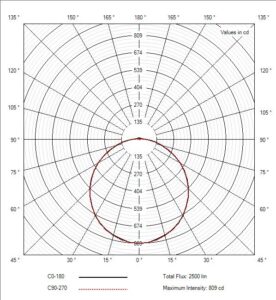

Photometrics
