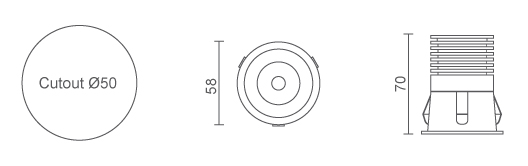

The Echo is a Ø50mm mini downlight with a textured anti-glare bezel. The mini downlight has a lumen package of 530lm making it perfect for accenting with soft light. The white bezel gives a minimal appearances due to its deep recessed lens.
The Echo uses a die-cast aluminium heatsink which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output | 986lm | ECH/986 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Beam Angle | 43° Beam | /43 |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming Switch dim/Touch dim Mains dimming Casambi | -DA -SD -MD -CA |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity
43° Beam Angle
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 986 lm | 8.5 W | 116.0 ll/cW |
| Light Source | CREE |
| SDCM | 3 |
| Longevity (L70/B10) | 60,000 hours |
| Colour Rendering | 82 |
| UGR | <19 |
| IP Rating | IP54 |
| Construction | Diecast Aluminium |
| RAL Colour (Other colours available upon special request) |
RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | <1% |
| Protective Class | SELV |
| Impact Resistance (IK) | IK07 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <1% |
| Overvoltage Protection | 320 V |
| In-rush Current | 12 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.5W |
| Operating Temperature | -25 +60°C |
Datasheet
Installation Guide
TM65

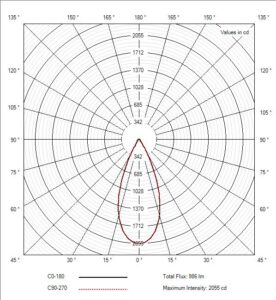

Photometrics
