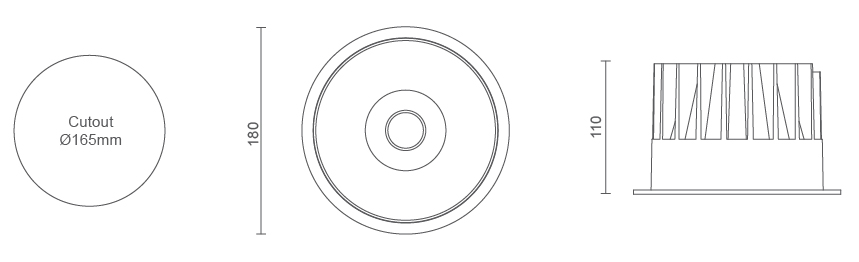

The Dome is a Ø180mmm large area downlight perfect for use in working areas due to its low glare performance and uniform output.
The heatsink is made from die-cast aluminium which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes. The product is then retained in the ceiling by two swing arms to allow for secure installation.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output | 1489lm 1985lm | DOM/1489 DOM/1985 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming Switch dim/Touch dim Mains dimming Casambi | -DA -SD -MD -CA |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

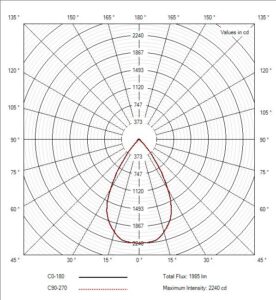

60° Beam Angle
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 1489 lm | 15.4 W | 96.7 ll/cW |
| 1985 lm | 20.5 W | 96.8 ll/cW |
| Light Source | COB |
| SDCM | 3 |
| Longevity (L70/B10) | 60,000 hours |
| Colour Rendering | 82 |
| UGR | <19 |
| IP Rating | IP44 |
| Construction | Diecast Aluminium |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | Recessed |
| Protective Class | SELV |
| Impact Resistance (IK) | IK07 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <1% |
| Overvoltage Protection | 320 V |
| In-rush Current | 12 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.5W |
| Operating Temperature | -25 +60°C |
| Standard Lumen Output | BLF | Emergency Lumen Output |
|---|---|---|
| 1489 lm | 18% | 270 lm |
| 1985 lm | 14% | 270 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | UKCA, CE, ROHS |
