Barracuda Track

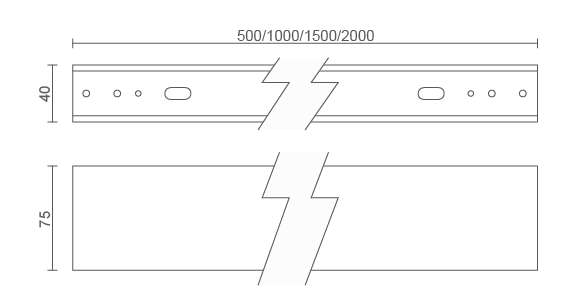

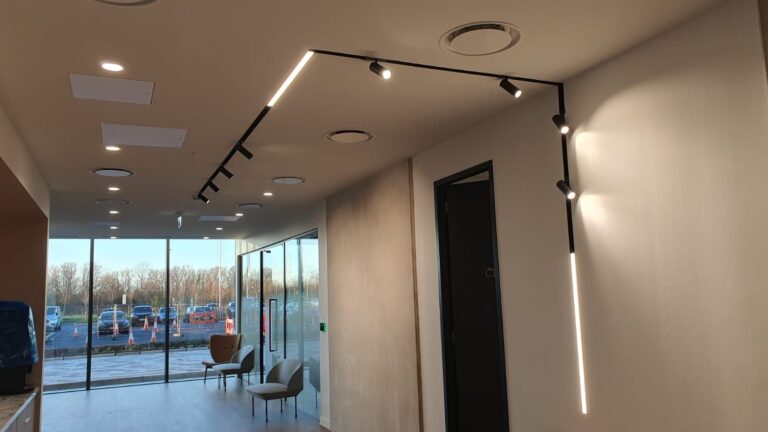

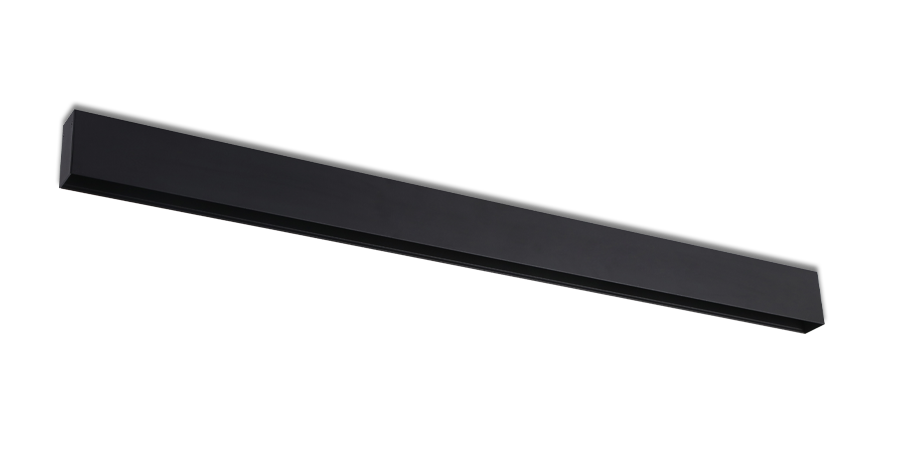

The Barracuda Track is a low voltage (SELV) magnetic system luminaire designed to work with a range of luminaire accessories. The track can be suspended, surface and recessed (trimless). The profile measures 40 x 75mm and can be supplied in lengths of  500, 1000, 1500 & 2000mm.

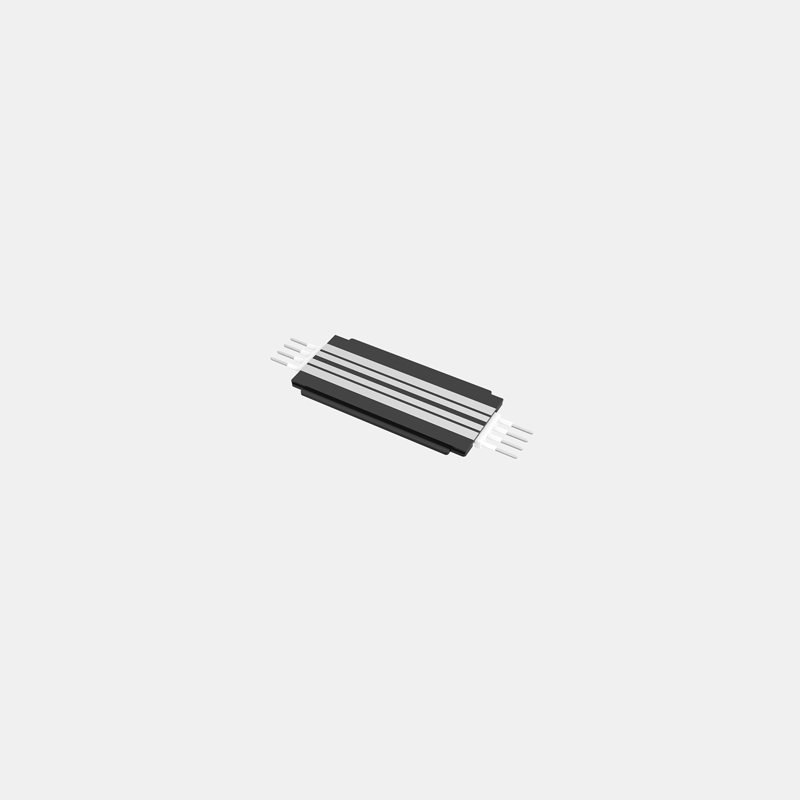

Inside the track is a steel plated PCB which allows the Barracuda luminaires to simply click into place anywhere along the profile. Thanks to the inline PCB connectors the Barracuda can be powered from a single driver across multiple lengths.

Clock Icon

More than 60,000 hours life span

colour wheel icon

Colour consistency with <3 SDCM

build icon

Assured build quality with die-cast based construction

5 icon

5 Year Warranty

Options

TypeOptionsCode
BarracudaTrackBAR/TRK
ModuleStandalone
Start
Middle
End

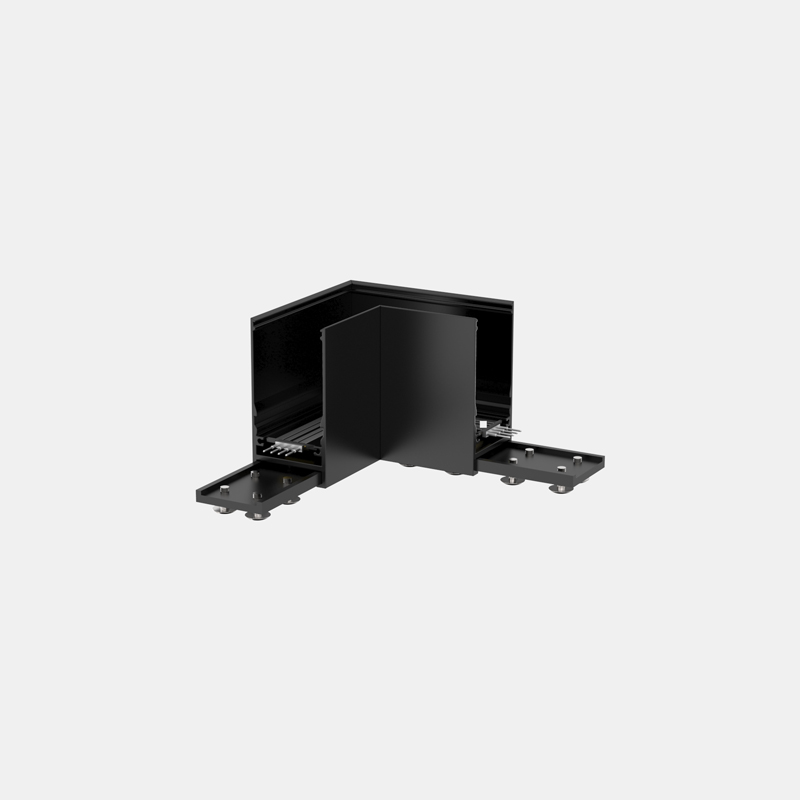

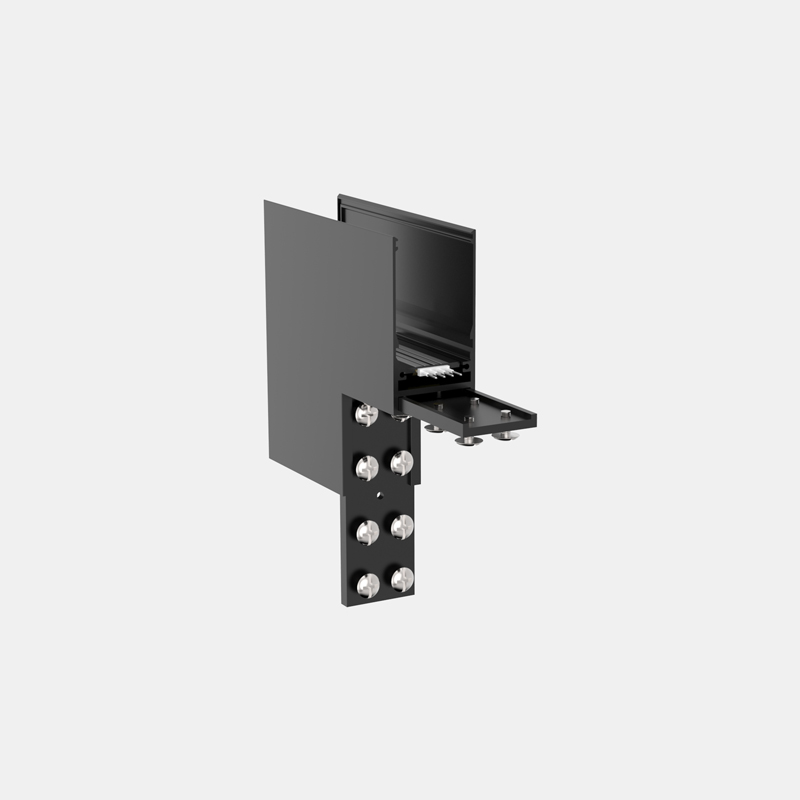

Corner		/0
/1
/2
/3
/4
Length500mm
1000mm
1500mm
2000mm		/500
/1000
/1500
/2000

Extras

TypeOptionsCode
DimmingDALI Dimming-DA

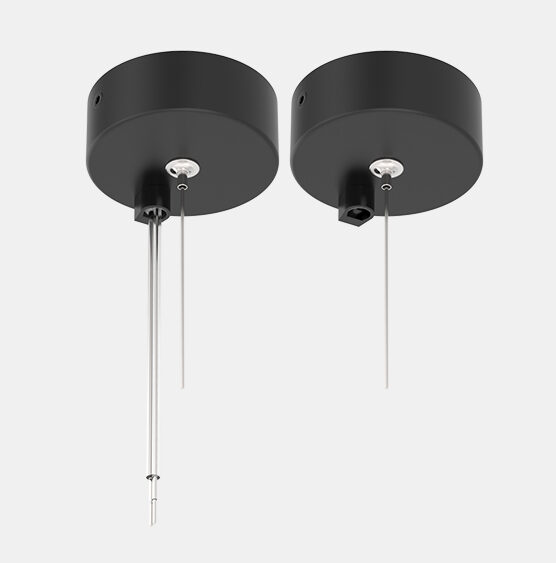

MountingSuspended

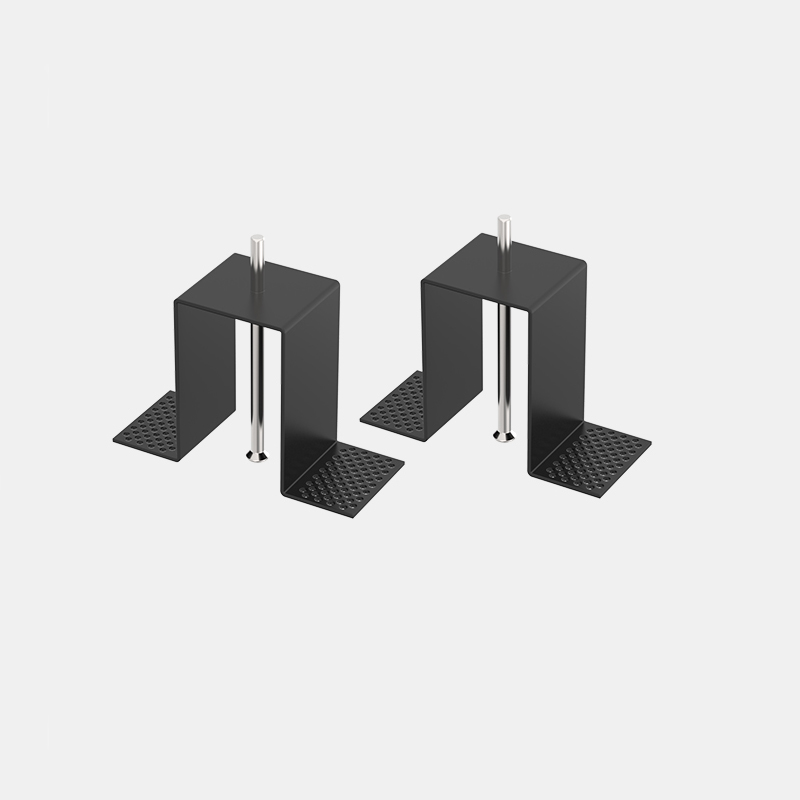

Recessed Trim
Recessed Trimless (additional first fix frame)		-S
-R
-TR

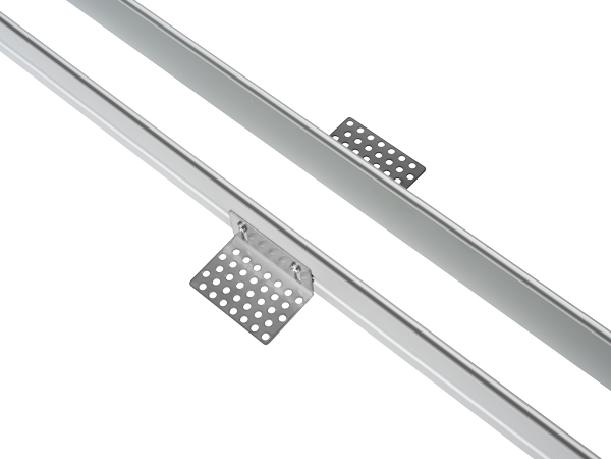

Optional Trimless First Fix Frame (-TR)

The Barracuda first fix frame is mounted in the ceiling aperture prior to the ceiling being finished leaving a mechanical aperture for the Barracuda Track to be installed and later removed (if needed) for future maintenance. See our installation guide for further information.

Performance & Reliability

Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

…








Technical Data

IP RatingIP20
ConstructionAluminium body
Steel backplate
RAL Colour
(Other colours available upon special request)		RAL9016 (Standard)
RAL9010
RAL9005
Mounting MethodSurface
Suspended (2m)
Recessed trimless
Protective ClassSELV
Impact Resistance (IK)IK04
Warranty5 Years
CertificationUKCA, CE, ROHS

Electrical Data

Rated Supply Voltage220 – 240 V
AC Voltage Range198 – 264 V
Mains Frequency50/60 Hz
Output LF current ripple @ 120Hz (Flicker)<1%
Overvoltage Protection320 V
In-rush Current2.5 A
THD<10%
Power Factor0.95
Parasitic Load0.9W
Operating Temperature-25 +60°C

Downloads

Installation Guide

Datasheet

TM65
