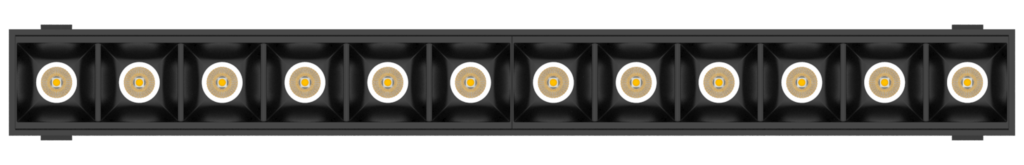

Barracuda Louvre

The Barracuda Louvre is part of the Barracuda System product family. All Barracuda products require the ‘Barracuda Track’ for installation and operation.

The linear is ideally suited to spaces that require general area lighting with low glare requirement such as working spaces and meeting rooms.

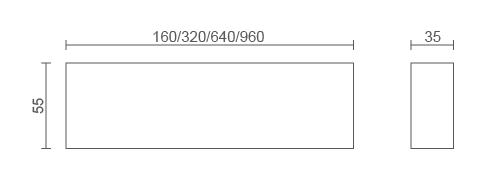

The luminaire is available in 160mm, 320mm, 640mm & 960mm lengths.

Clock Icon

More than 50,000 hours life span

colour wheel icon

Colour consistency with <3 SDCM

build icon

Assured build quality with die-cast based construction

5 icon

5 Year Warranty

Options

TypeOptionsCode
BarracudaLouvreBAR/LL
Lumen OutputSee datasheet table
Length160mm
320mm
640mm
960mm		/160
/320
/640
/960
Colour Temperature3000K
4000K
5000K		/3K
/4K
/5K
Beam Angle20°
34°
48°		/20
/34
/48

Extras

Type Options Code
Dimming DALI Dimming -DA

Performance & Reliability

Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

20° Beam Angle

34° Beam Angle

48° Beam Angle

Performance

Typical Lumen Outputs Wattage ll/cW
607 lm (48° 160mm) 8.0 W 75.9 ll/cW
1186 lm (48° 320mm) 15.8 W 75.1 ll/cW
2258 lm (48° 640mm) 30.0 W 75.3 ll/cW
3389 lm (48° 960mm) 45.0 W 75.3 ll/cW
Light SourceSMD
SDCM3
 Longevity (L70/B10)70,000 hours
Colour Rendering90
UGR<16

Technical Data

IP RatingIP20
ConstructionAluminium Body
Polycarbonate diffuser
RAL Colour
(Other colours available upon special request)		RAL9016 (Standard)
RAL9010
RAL9005
Mounting MethodTo be used only with Barracuda track ‘click-in’
Protective ClassSELV
Impact Resistance (IK)IK04
Warranty5 Years
CertificationUKCA, CE, ROHS

Electrical Data

Rated Supply Voltage DC48 V
DC Voltage Range 38 – 60 V
Output LF current ripple @ 120Hz (Flicker) <3%
Overvoltage Protection 80 V
In-rush Current 10 A
THD <10%
Power Factor 0.95
Parasitic Load 0.34W
Operating Temperature -10 + 50°C
