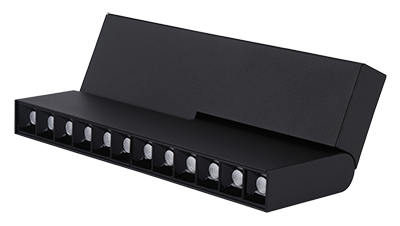

The Barracuda Adjustable Louvre is part of the Barracuda System product family. All Barracuda products require the ‘Barracuda Track’ for installation and operation.
The adjustable louvre is ideally suited to spaces where a directional main area light with a low glare characteristic is needed or for a larger wall washing application where a conventional spotlight is too harsh.
The luminaire is available in a 320mm length.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Barracuda | Louvre | BAR/ALL |
| Lumen Output | See datasheet table | |
| Length | 320mm | /320 |
| Colour Temperature | 3000K 4000K 5000K | /3K /4K /5K |
| Beam Angle | 20° 34° 48° | /20 /34 /48 |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming | -DA |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

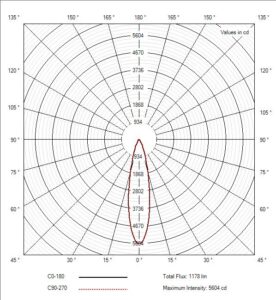

20° Beam Angle

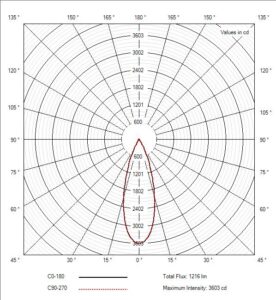

34° Beam Angle
48° Beam Angle
| Typical Lumen Outputs | Wattage | ll/cW |
|---|---|---|
| 1186 lm (48° 320mm) | 15.8 W | 75.1 ll/cW |
| Light Source | SMD |
| SDCM | 3 |
| Longevity (L70/B10) | 70,000 hours |
| Colour Rendering | 90 |
| UGR | <16 |
| IP Rating | IP20 |
| Construction | Aluminium Body Polycarbonate diffuser |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | To be used only with Barracuda track ‘click-in’ |
| Protective Class | SELV |
| Impact Resistance (IK) | IK04 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | DC48 V |
| DC Voltage Range | 38 – 60 V |
| Output LF current ripple @ 120Hz (Flicker) | <3% |
| Overvoltage Protection | 80 V |
| In-rush Current | 10 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.34W |
| Operating Temperature | -10 + 50°C |
