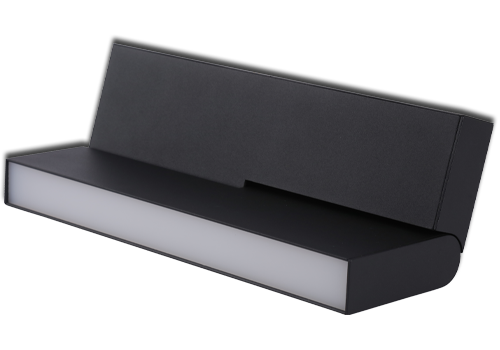

The Barracuda Adjustable Linear is part of the Barracuda System product family. All Barracuda products require the ‘Barracuda Track’ for installation and operation.
The adjustable linear is ideally suited to spaces where a directional main area light is needed or for a larger wall washing application where a conventional spotlight is too harsh.

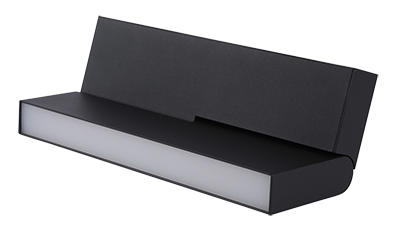

The luminaire is available in a 320mm length.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Barracuda | Linear | BAR/AL |
| Diffuser Type | Frosted Opal Microprism | /F1 /P1 |
| Lumen Output | See datasheet table | |

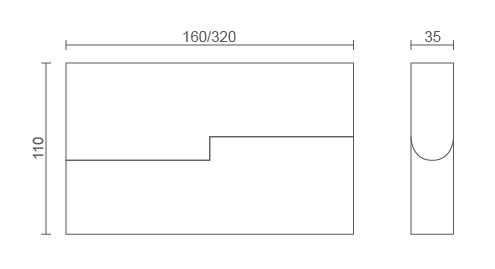

| Length | 320mm | /320 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming | -DA |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.
| Typical Lumen Outputs | Wattage | ll/cW |
|---|---|---|
| 1146 lm (Opal F1 320mm) | 13.2 W | 86.8 ll/cW |
| Light Source | SMD |
| SDCM | 3 |
| Longevity (L70/B10) | 70,000 hours |
| Colour Rendering | 90 |
| UGR | <19 |
| IP Rating | IP20 |
| Construction | Aluminium Body Polycarbonate diffuser |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | To be used only with Barracuda track ‘click-in’ |
| Protective Class | SELV |
| Impact Resistance (IK) | IK04 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | DC48 V |
| DC Voltage Range | 38 – 60 V |
| Output LF current ripple @ 120Hz (Flicker) | <3% |
| Overvoltage Protection | 80 V |
| In-rush Current | 10 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.34W |
| Operating Temperature | -10 + 50°C |
