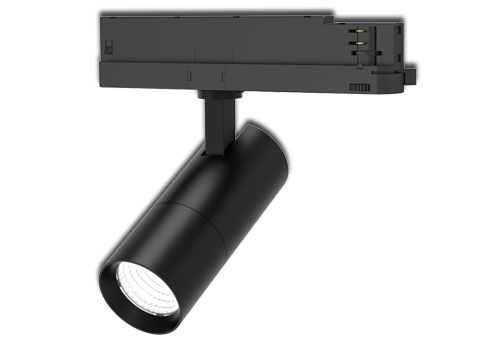

The Apollo is an adjustable track mounted spotlight which is compatible with Powergear, Global and other track systems.
The luminaire can be supplied in with single and three phase versions and can also be used with DALI dimming tracks.
This luminaire is constructed from two die-cast parts – the heastsink and bezel. These components are held together at the point of articulation for ease of maintenance.
The Apollo is available in black and white finishes.
More than 60,000 hours life span
'Plug and Play' No hard fixing
Easy install No remote components
Modular component build
| Type | Options | Code |
|---|---|---|
| Lumen Output | 1243lm 1554lm 2221lm | APL-T/1243 APL-T/1554 APL-T/2221 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Beam Angle | 36° Beam 60° Beam | /36 /60 |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming Switch dim/Touch dim Mains dimming Casambi | -DA -SD -MD -CA |
Supplied with high performance LED engine and premium Premium driver to ensure an outstanding performance with longevity.

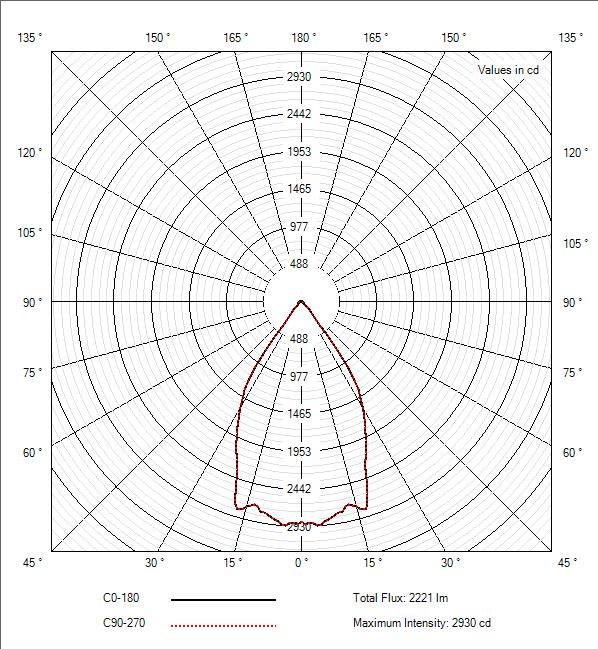

60° Beam Angle
| Typical Lumen Outputs | Wattage | ll/cW |
|---|---|---|
| 1554 lm | 14.1 W | 110.2 ll/cW |
| 2221 lm | 20.1 W | 110.5 ll/cW |
| Light Source | COB |
| SDCM | 3 |
| Longevity (L70/B10) | 70,000 hours |
| Colour Rendering | 82 |
| UGR | <19 |
| IP Rating | IP20 |
| Construction | Diecast Aluminium |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | Track mounted: Global Powergear Stucchi Unipro |
| Protective Class | Class 1 |
| Impact Resistance (IK) | IK04 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <3% |
| Overvoltage Protection | 320 V |
| In-rush Current | 2.5 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.8W |
| Operating Temperature | -25 +60°C |
